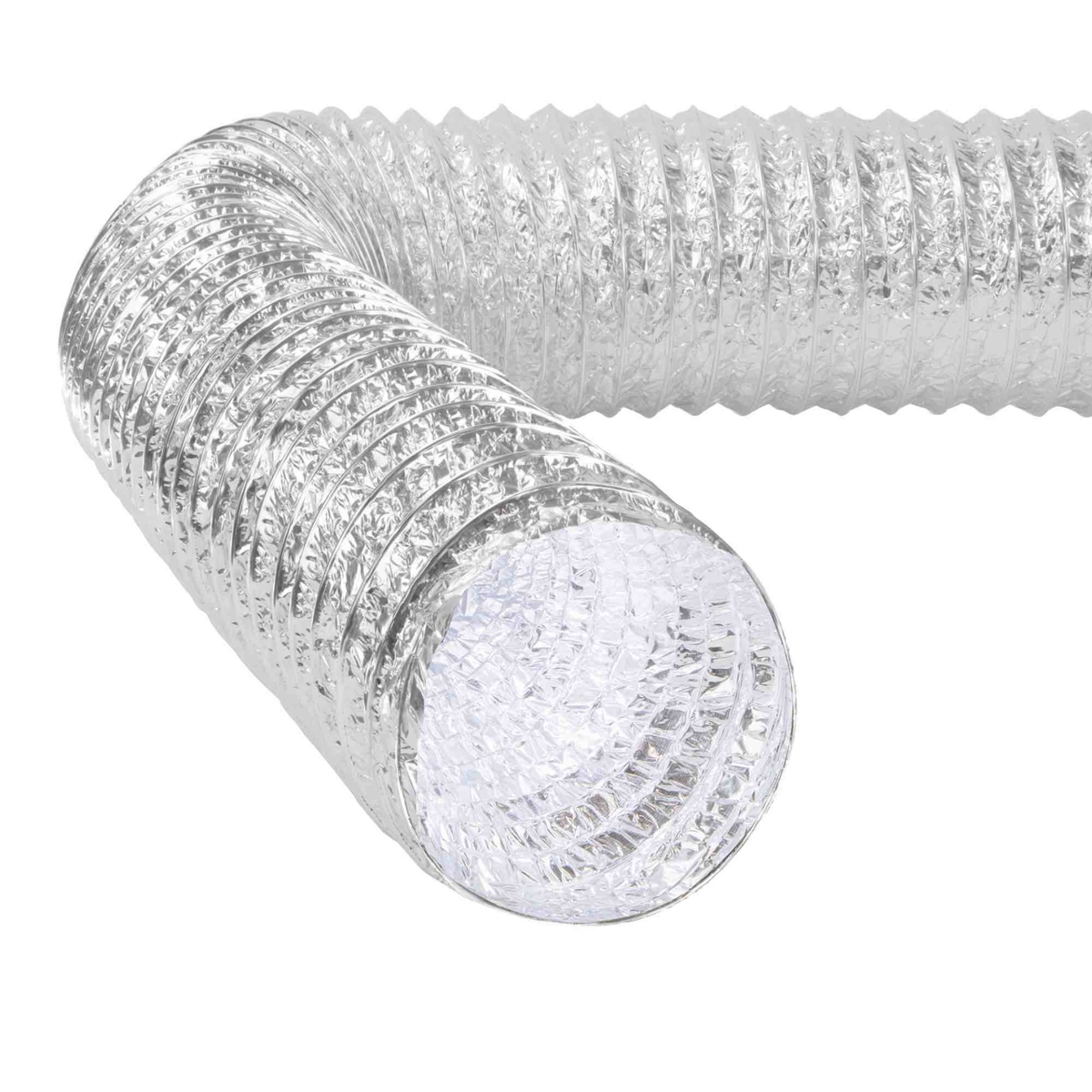

Panflex AM alu.flex.diam.127mm doos a 10
| Titel |
Panflex AM alu.flex.diam.127mm doos a 10 |
| Artikelnummer |
A0380055 |
| Fabrikantnummer |
0300680 |
| EAN code |
08718552306502 |
| Merk | Panflex |
|---|
| Wanddikte | 70 µm |
|---|
| Max. mediumtemperatuur (continu) | 100 °C |
|---|
| Min. mediumtemperatuur (continu) | -25 °C |
|---|
| Rollengte | 10 m |
|---|
| Mediumtemperatuur (continu) | -25-100 °C |
|---|
| | alu.flex.diam.102mm doos a 10 | alu.flex.diam.127mm doos a 10 | alu.flex.diam.133mm doos a 10 | alu.flex.diam.152mm doos a 10 | alu.flex.diam.160mm doos a 10 | alu.flex.diam.203mm doos a 10 |
|---|
| Binnendiameter | 106 mm | 131 mm | 136 mm | 156 mm | 166 mm | 207 mm |
|---|
| Nom. diameter | 100 mm | 125 mm | 130 mm | 150 mm | 160 mm | 200 mm |
|---|
| Inwendige diameter | 106 mm | 131 mm | 136 mm | 156 mm | 166 mm | 207 mm |
|---|
| Buigradius | 60 mm | 75 mm | 78 mm | 90 mm | 96 mm | 120 mm |
|---|
